ZX-141/142/143 Elastomer Bellow mechanical seal replace VULCAN 14142143

Description:
ZX-140 mechanical seal
replace the mechanical seal of Vulcan 14/142/143

Technical Parameter:
Temperature: -40℃ to +150℃
Pressure: ≤1.0MPa
Speeds: ≤15m/s

Materials:
Stationary Ring:Silicon Carbide Reaction bonded,Resin Impregnated Carbon Graphite(Furan),Ceramic(Alumina)
Rotary Ring:Silicon Carbide Reaction bonded,Resin Impregnated Carbon Graphite(Furan),Ni-binder Tungsten Carbide
Secondary Seal:Nitrile(NBR),Ethylene Propylene(EPDM),Fluorocarbon Rubber(Viton)
Spring and Metal Parts:Stainless Steel,Stainless Steel

Applications:
Clean water
sewage water
oil and other moderately corrosive fluids

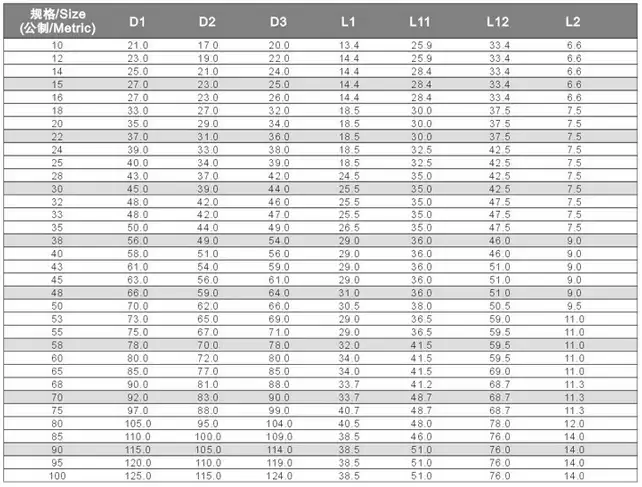

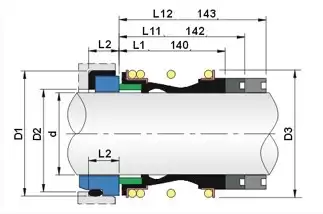

SIZE:
