Description:
ZX MG920/ D1-G50 Mechanical Seal Replacement to:
John Crane type 2 seal、Flowserve 200 seal
Latty T200 seal、Roten RB02 seal、Roten 21 seal
Sealol 43 CE short seal、Sterling 212 seal
Technical Parameter:
Temperature: -20℃ to +120℃
Pressure: ≤1.0MPa
Speeds: ≤15m/s
Materials:
Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide
Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide
Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)
Applications:
Clean water
sewage water
oil and other moderately corrosive fluids

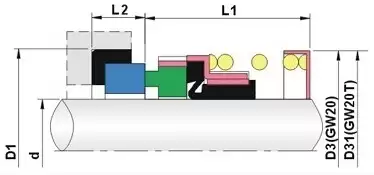

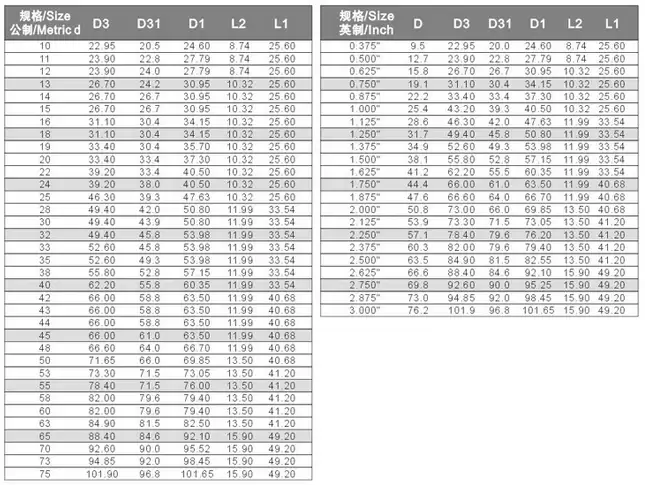

SIZE:
