Description:
ZX-MG1MG12/MG13/MGS20 Mechanical Seal Replacement to:
Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 seal & G60 stationary
Aesseal B02/B012/B013 seal、Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193
Hecker HN 410SU / Hecker HN 410KU / Hecker HN 410NU
Roten L3 / Roten L3k / Roten L3、Vulcan 19 / Vulcan 192/ Vulcan 193
Technical Parameter:
Temperature: -20℃ to +120℃
Pressure: ≤1.0MPa
Speeds: ≤10m/s
Materials:
Stationary Ring: Silicon Carbide Reaction Bonded,Ceramic(Alumina),Silicon Carbide Sintered Pressureless,Ni-binder Tungsten
Rotary Ring: Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless,Ni-binder Tungsten Carbide
Spring and Metal Parts:Stainless Steel,Stainless Steel
Secondary Seal:Fluorocarbon Rubber(Viton),Nitrile(NBR),Ethylene
Applications:
Clean water
sewage water
oil and other moderately corrosive fluids

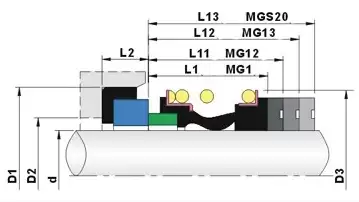

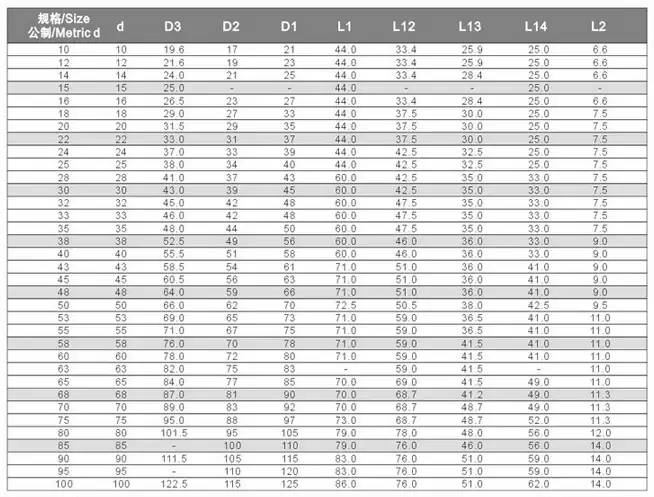

SIZE:
