Description:
ZX-T1A Mechanical Seal Replacement to:
For blower pump, diving pump and circulating pump
Replacing the mechanical seal John Crane 1A
Technical Parameter:
Temperature: -20℃ to +120℃
Pressure: ≤1.4MPa
Speeds: ≤15m/s
Materials:
Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide
Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide
Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)
Applications:
Clean water
sewage water
oil and other moderately corrosive fluids

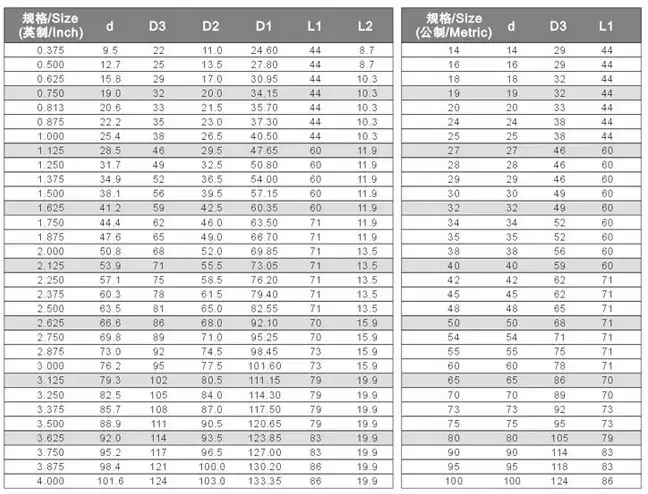

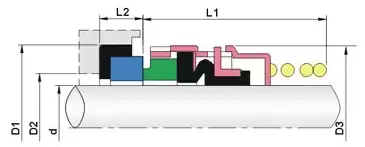

SIZE:
