Description:
ZX-T24 mechanical seal,for blower pump, diving pump,circulating pump
replace the mechanical seal of Burgmann MG912
Technical Parameter:
Temperature: -20℃ to +120℃
Pressure: ≤1.0MPa
Speeds: ≤10m/s
Materials:
Stationary Ring: Silicon Carbide Reaction Bonded,Ceramic(Alumina),Silicon Carbide Sintered Pressureless,Ni-binder Tungsten
Rotary Ring: Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless,Ni-binder Tungsten Carbide
Spring and Metal Parts:Stainless Steel,Stainless Steel
Secondary Seal:Fluorocarbon Rubber(Viton),Nitrile(NBR),Ethylene
Applications:
Clean water
sewage water
oil and other moderately corrosive fluids

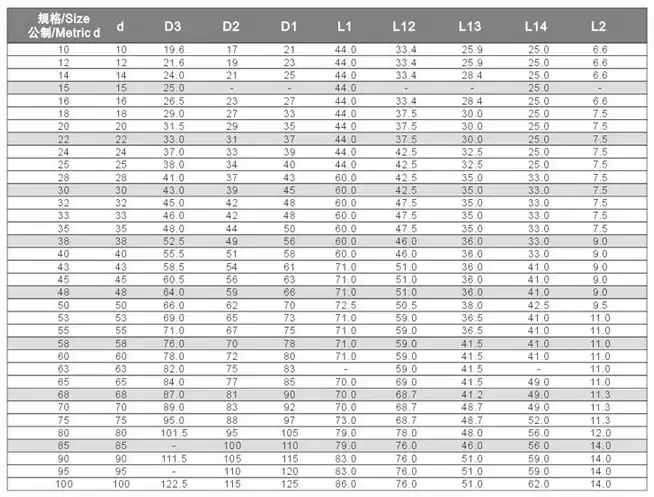

SIZE:
