Description:
ZX-9 Mechanical Seal Replacement to:
Aesseal M01、Roten seal 90、Sealol T seal
Sterling 290、John Crane T109、T9、T90
Technical Parameter:
Temperature: -40℃ to +250℃
Pressure: ≤1.2MPa
Speeds: ≤15m/s
Materials:
Stationary Ring: Silicon Carbide Reaction Bonded,Ceramic(Alumina),Silicon Carbide Sintered Pressureless,Ni-binder Tungsten
Rotary Ring: Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless,Ni-binder Tungsten Carbide
Spring and Metal Parts: Stainless Steel,Stainless Steel,Hastelloy C-4 Alloy
Secondary Seal:Pure PTFE
Applications:
Clean water
sewage water
oil and other moderately corrosive fluids

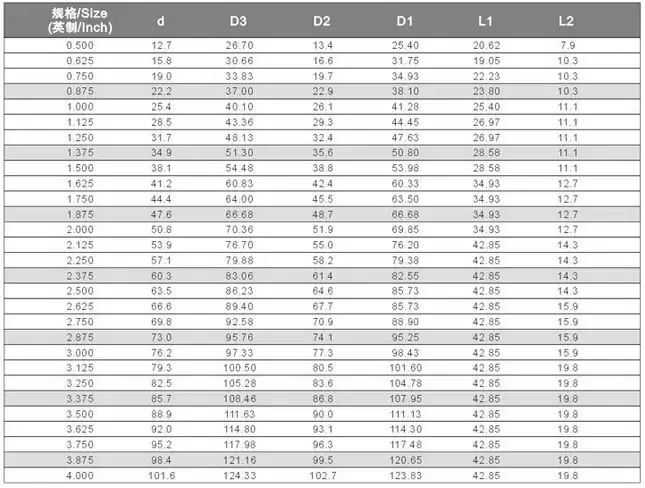

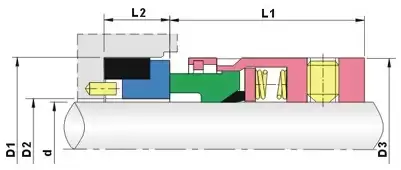

SIZE:
